Cable Gland

A YAGE cable gland, also known as a cable connector or cable fitting, is a device used to secure and seal the ends of electrical cables as they enter or exit electrical equipment, enclosures, or junction boxes. Cable gland provides protection against environmental factors such as dust, water, oils, and other contaminants while maintaining the integrity of the electrical connections. Here are some key points about cable glands:

  1. Function: The primary function of a cable gland is to provide a secure and watertight seal around the cable, preventing the entry of moisture, dust, or other particles into the equipment or enclosure. It also helps to relieve strain on the cable by anchoring it firmly in place.

  2. Design and Construction: Cable gland is typically cylindrical or conical in shape and are made from various materials, including metal (such as brass, stainless steel, or aluminum) or plastic (such as nylon or polyamide). They consist of several components, including a threaded body, sealing nut, sealing insert, and compression ring.

  3. Cable Compatibility: Cable glands are available in different sizes to accommodate cables of varying diameters. It's important to select a cable gland that matches the outer diameter of the cable to ensure a proper fit and effective sealing. Some cable glands offer adjustable sealing inserts or multiple size options to accommodate a range of cable sizes.

  4. Thread Type: Cable glands have threaded bodies that allow them to be mounted onto the equipment or enclosure. The thread type can vary, such as metric, NPT (National Pipe Thread), PG (PanzerGewinde), or other specialized threads. It's important to choose a cable gland with a compatible thread type for the specific application.

  5. Sealing Mechanism: Cable glands employ various sealing mechanisms to provide a watertight seal around the cable. Common sealing methods include compression seals, where the sealing insert and compression ring apply pressure on the cable to create a tight seal, or elastomeric seals, which use rubber or silicone grommets to seal around the cable.

  6. IP Ratings: Cable gland is often assigned an Ingress Protection (IP) rating that indicates their level of protection against solids and liquids. IP ratings consist of two digits, with the first digit representing protection against solids (such as dust) and the second digit representing protection against liquids (such as water). Higher IP ratings indicate higher levels of protection.

  7. Certification and Standards: Depending on the industry or application, cable gland may need to comply with specific standards and certifications. For example, in certain hazardous or explosive environments, cable gland may need to be certified as explosion-proof or meet specific international standards such as ATEX or IECEx.

  8. Accessories: Cable glands may come with additional accessories or features, such as lock nuts, sealing washers, strain relief clamps, grounding options, or EMC (Electromagnetic Compatibility) shielding for applications requiring electromagnetic interference protection.

Cable gland plays a crucial role in maintaining the safety and functionality of electrical installations by protecting cables from external elements. When selecting a cable gland, it's important to consider factors such as cable compatibility, environmental conditions, IP rating requirements, and any applicable industry standards or regulations. Proper installation and sealing are essential to ensure the effectiveness of the cable gland's protection.

View as

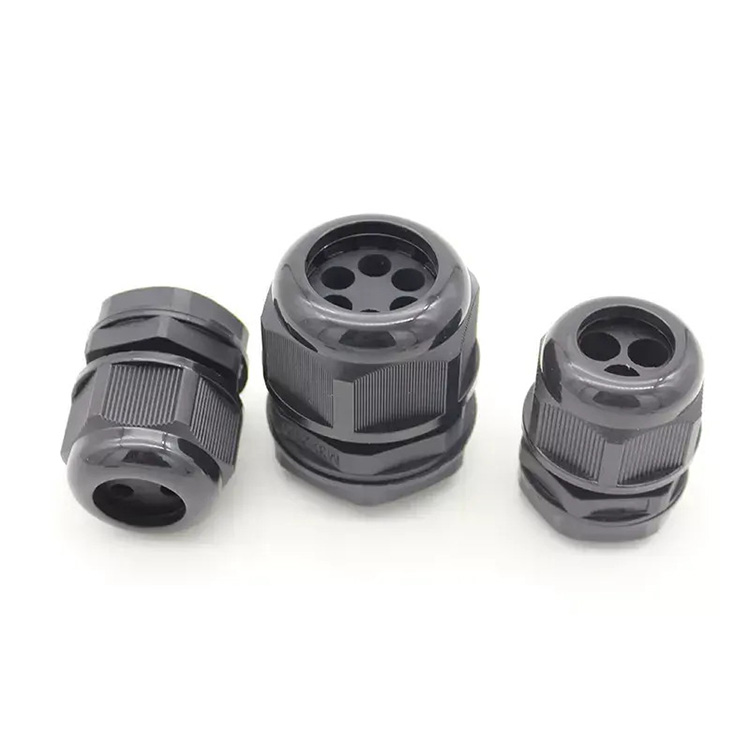

Multiple-Hole 2-8 Holes Waterproof Nylon Cable Gland

Multiple-Hole 2-8 Holes Waterproof Nylon Cable Gland

A China YAGE multiple-hole 2-8 holes waterproof nylon cable gland is a cable gland designed to provide waterproof sealing for multiple cables or wires entering an enclosure or equipment. It typically has a single gland body with multiple holes, allowing for the passage of multiple cables while maintaining a watertight seal.

Read MoreSend Inquiry
Nylon Breathable Air Vent Cable Gland

Nylon Breathable Air Vent Cable Gland

China YAGE nylon breathable air vent cable gland is a cable gland designed to provide cable entry while allowing for the passage of air or gases. It is typically used in applications where ventilation or pressure equalization is necessary, such as in electrical enclosures, control panels, or equipment that generates heat.

Read MoreSend Inquiry

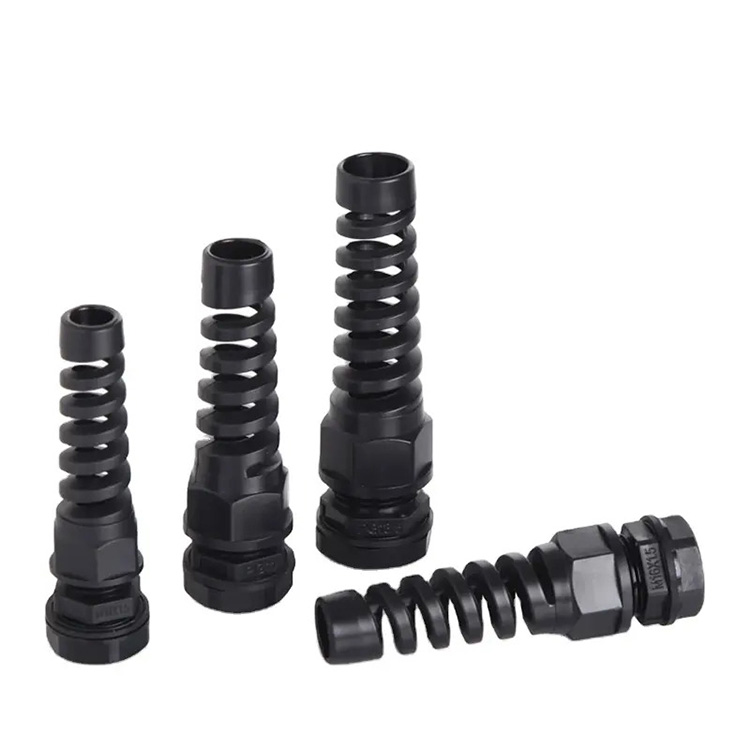

Pg Type Waterproof Ip68 Cable Gland

Pg Type Waterproof Ip68 Cable Gland

China YAGE PG type waterproof IP68 cable gland is a specific category of cable glands that adhere to the PG (Panzer Gewinde) standard. These cable glands are designed to provide a secure and waterproof seal for cables entering electrical enclosures, junction boxes, or equipment in industrial and harsh environments.

Read MoreSend Inquiry

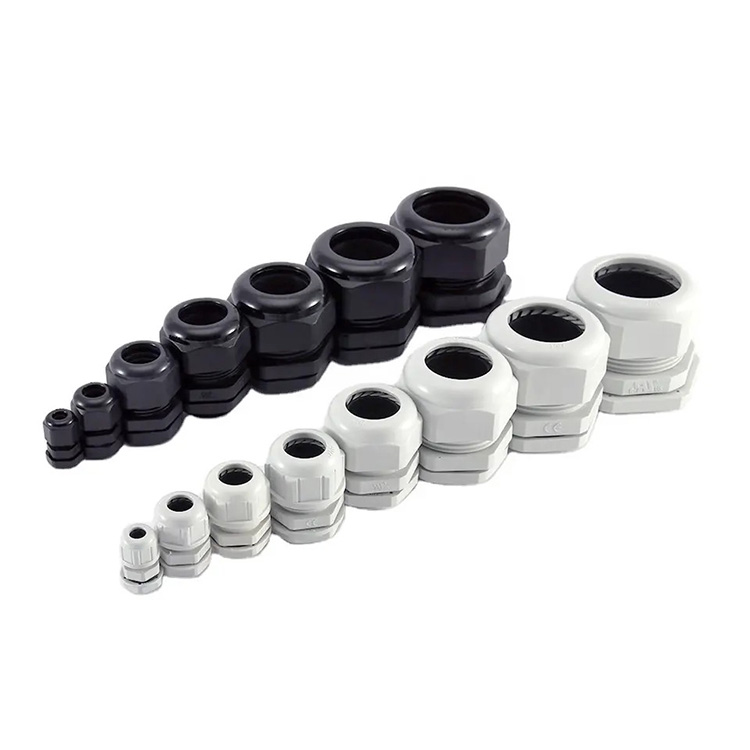

Ip68 Electrical Waterproof Cable Gland

Ip68 Electrical Waterproof Cable Gland

China YAGE IP68 electrical waterproof cable gland is devices used to secure and seal cables entering electrical enclosures, junction boxes, or equipment while providing a high level of protection against water and dust. The IP68 rating signifies that the cable gland is completely dust-tight and can withstand immersion in water beyond 1 meter for a specified period, typically 30 minutes.

Read MoreSend Inquiry

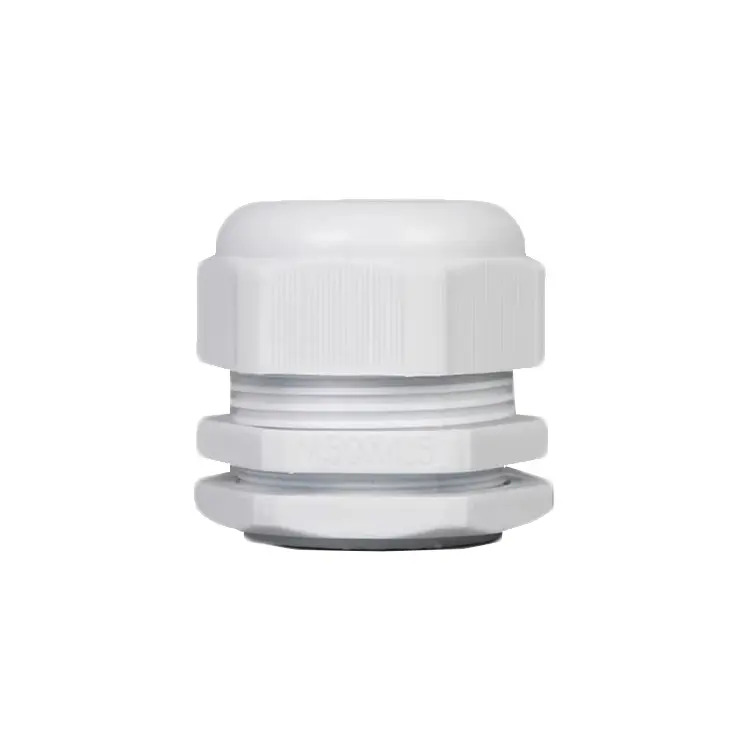

Waterproof Cable Gland

Waterproof Cable Gland

A China YAGE waterproof cable gland, also known as a waterproof cable connector or cable gland with IP (Ingress Protection) rating, is a device used to provide a secure and watertight seal around a cable entry point in an enclosure or housing. It is designed to prevent water, dust, and other contaminants from entering the enclosure through the cable entry point.

Read MoreSend Inquiry
Metric Nylon Cable Gland

Metric Nylon Cable Gland

A China YAGE metric nylon cable gland is a type of cable gland that follows the metric thread standard. Metric threads are commonly used in many countries worldwide, including Europe, and they are specified by their thread pitch and diameter.

Read MoreSend Inquiry
China Cable Gland is one kind of products from YAGE factory. As the one of leading manufacturers and suppliers in China, we provide low price products from our factory.We sincerely look forward to becoming your reliable long-term business partner!
